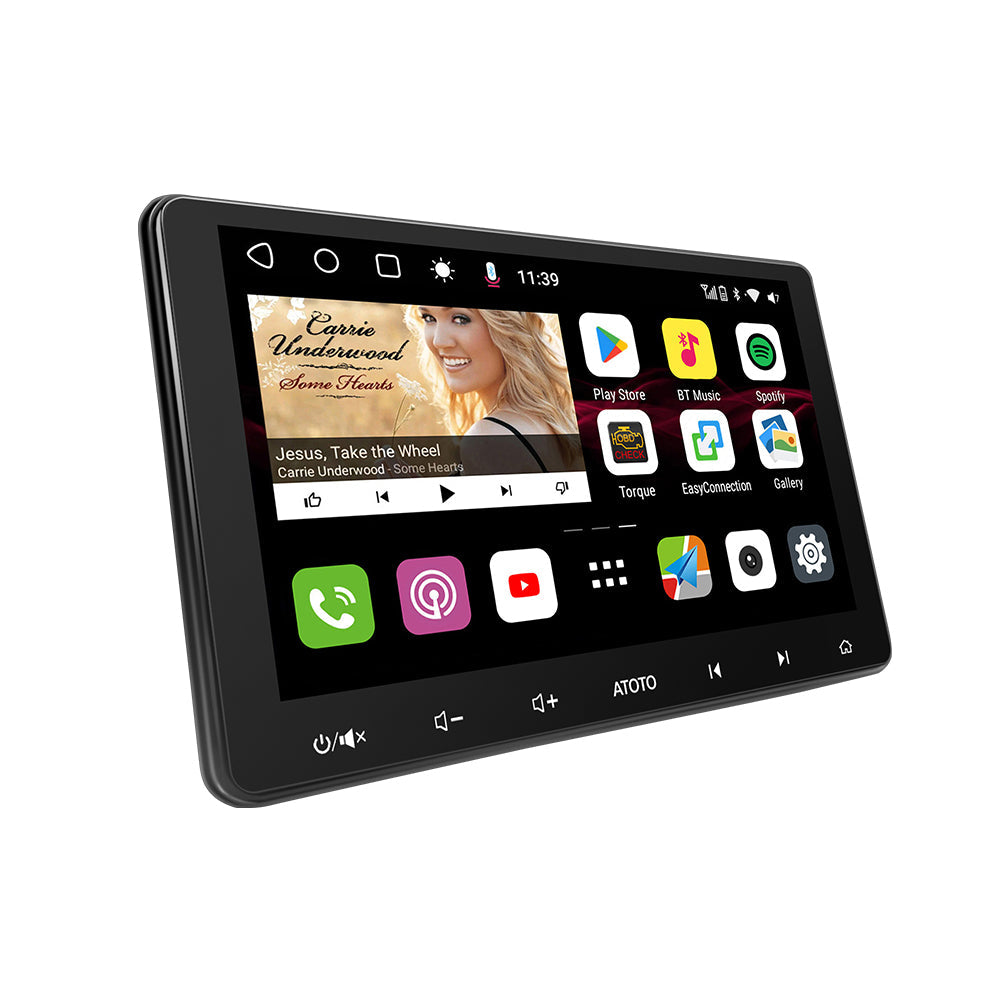

ATOTO S8 Premium Carplay Android Auto 10 inch Double DIN Car Stereo GPS QLED

ATOTO S8 Premium 10 inch Double DIN Car Stereo Android GPS Bluetooth QLED

Product Information

• Product Version: S8 Premium (Gen2); Model No: S8G2114PM (3GB/32GB); Mounting style: IAH10D (Integrated and Adaptive Headunit of 10.1-inch Display);
• System Information. SoC Chip: UNISOC 7862 ARM Cortex Octa-Core (up to 1.8GHz) CPU with ARM Mali-G52 MP2 GPU, advanced 12nm manufacturing process. System Version: ATOTO AICE UI 11.0, which is developed & customized based on Android Q(10.0); System Language: English, German, French, Italian, Spanish, Portuguese, Japanese, Russian, Arabic, Polish, Korean, Dutch, Thai, Turkish, Ukrainian, Hebrew, Greek, Hungarian, Indonesian, Vietnamese and Chinese.
• DSP / Pre-Amplifier: Built-in Digital Signal Processor allows you to set precise equalization, signal delay, bass boost, and bass filter. Preset 9 EQ Modes, and 32 adjustable frequency bands (16 bands for front and 16 for rear). Built-in Max 4*49W BTL Amplifier with RMS 4*29W (Vcc=14.4v, THD=10%);
• Bluetooth & Radio Tuner: Dual Bluetooth (BT1 5.0 & BT2 4.1). Bluetooth1 is Qualcomm Bluetooth 5.0 with aptX & aptX HD codec (SBC & AAC are also supported), and it supports HFP/HSP/A2DP/AVRCP/PBAP protocols; Radio tuner: Built-in high sensitivity FM/AM radio tuner with RDS/RBDS feature (and the radio station name will be displayed if available);
• Display: Full HD 10.1-inch 1280*720 5-Touch Capacitive Touchscreen with 600cd/m2 latest QLED screen;
• GPS/Navigation: Built-in GPS Receiver module with an external GPS antenna and Google Maps app is installed as the default GPS map. Users may need to download offline map data for a specific area for offline navigation if preferred. Other maps/navigation apps (Waze, Tomtom, HereWeGo) from Google Play Store can also be installed;

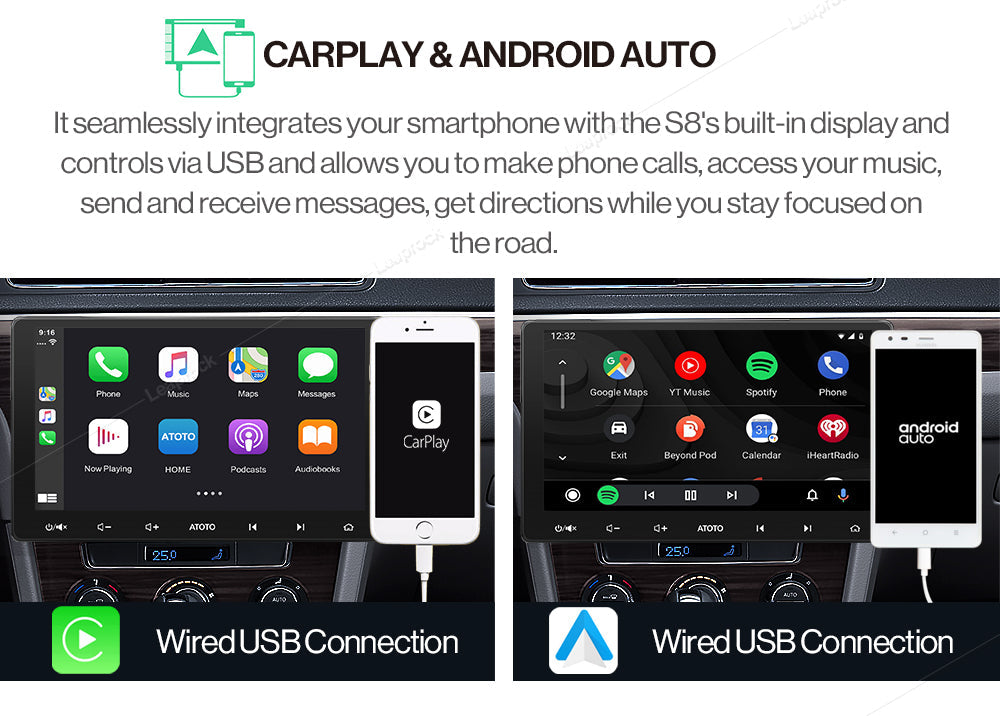

• Phone Mirroring & Phone Integration Link: Phone Mirroring - EasyConnect app pre-installed, it supports working with the latest iOS & Android devices (the system firmware update may be required). Two options (USB /WiFi) are all available for connecting to Android smartphones and iPhone;Phone Integration Link (wired / wireless CarPlay and Android Auto) - It seamlessly integrates your smartphone (iPhone & Android) with the S8's built-in display, allowing you to make phone calls, access your music, send and receive messages, get directions (Note: for the wired CarPlay and Android Auto Connection on ATOTO S8 series head-units, please use the factory/original USB cable that comes with the phone).
• Some Other features: Fast System Boot - Start the car & access system within 2 seconds; Split Screen Display - Run a navigation map and another app (such as Youtube) on the screen simultaneously; Digital Photo Frame option - Users can put memorable photos in the specified Gallery Folder and let them play automatically on S8's HD big screen with only a tap (or a hand gesture); Speed Compensated Volume Control (SCVC)- When you increased in speed the headunit volume increased a certain percentage and when you slowed down, the volume dropped. This is to compensate for road noise; USB network tethering - sharing your phone data with S8 headunit via USB connection (EasyConnect app); Live RearView (LRV) - Now you can access rearview even if your vehicle in moving ahead. This could remove obstructions caused by passengers, headrests and the vehicle’s roof and rear pillars, increasing field of view and allowing the driver to have an unimpeded view of the lanes behind and traditional blind-spots

Inputs,Outputs & Slots

• AUX Audio(L/R) /Video input; FCAM front camera video input; Rearview camera input (S8 can process 720P HD video signal. So you can connect a specific HD rearview camera to S8 for 720P video display); 4-CH RCA Audio Out (2v) for connecting to factory/aftermarket amplifier; Separate Sub-woof Out (0.8v); For S8 Premium, there is no Optical SPDIF Out, or Quick Charge interface; To connect to a headrest monitor, you need to get an extra ATOTO USB-to-HDMI or USB-to-RCA video output adaptor(not included)
• One Micro SD slot - to store media files, it can read up to 512GB storage card; (2 USB) interfaces for data communication, including reading USB Drive (read unlimited external storage devices, including portable SSD) & optional USB devices, and connecting phones for Mirror casting/EasyConnect or Phone Integration Link;

Vehicle Fit:

• This model has a 10.1-inch display and a double-DIN adaptive headunit case. The dimension of its headunit case is 170mm*95mm* 36 mm, and its 10.1-inch screen dimension is 258 mm x 160 mm. It can be installed in most vehicles that have standard double-DIN dashboard opening. For few vehicles, the edge of the 10.1-inch display part may block the air vent, emergency switch, or other buttons located around the double-DIN opening, resulting in inconvenience. Be sure yours won't have such problems, or you can accept it.
