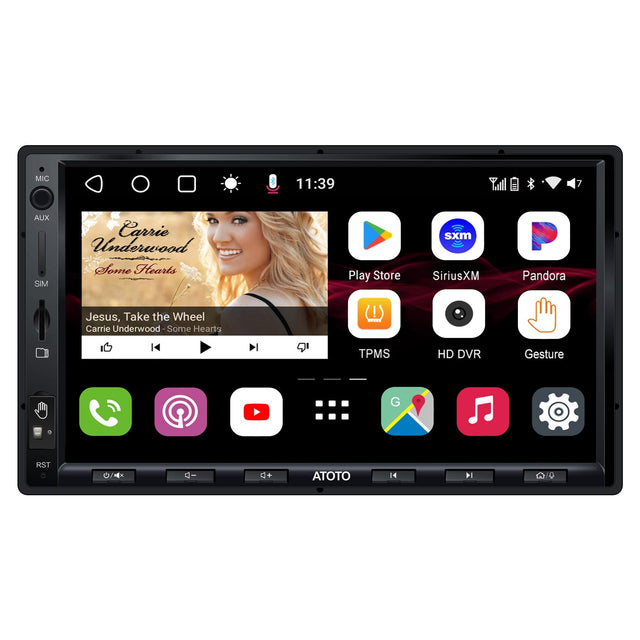

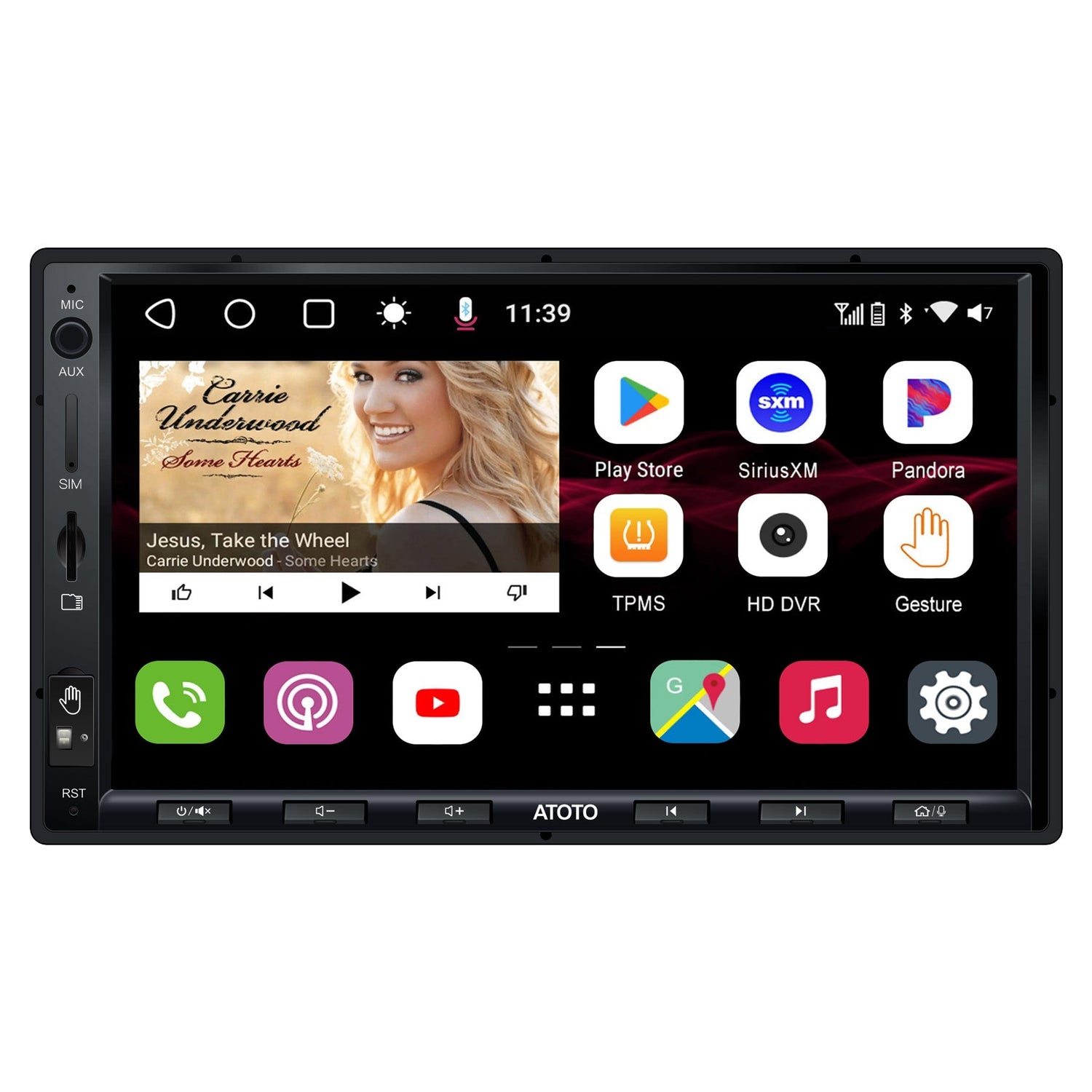

ATOTO Car Stereo S8 Ultra 7inch Carplay & Android Auto 4G+64G

Product Information

• Product Model: S8 Ultra (Gen2) Version; Model No: S8G2A78UL (4GB+64GB), Mounting style: UDH07D (Universal 2-DIN Head unit with 7-inch Display, almost all dash kits with a 2-DIN opening are compatible);

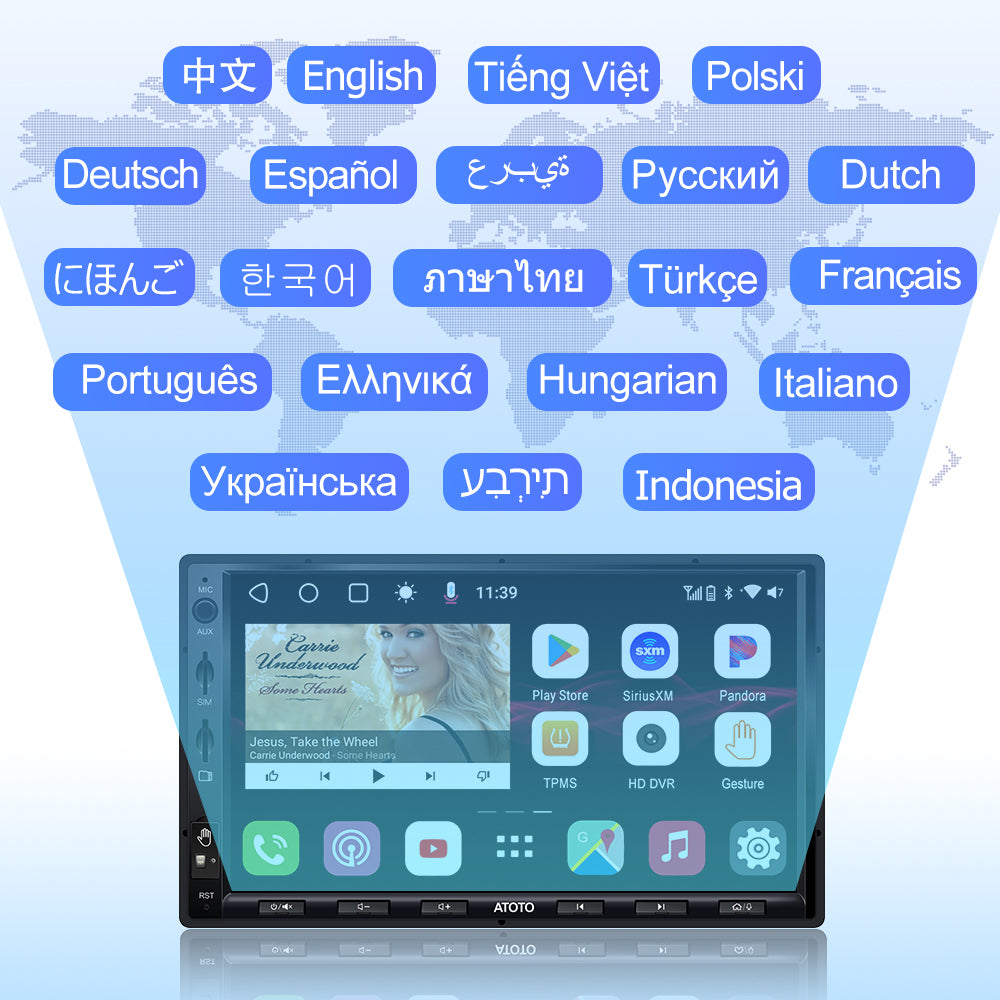

• System Information: SoC Chip: UNISOC 7862 ARM Cortex Octa-Core (up to 1.8GHz) CPU with ARM Mali-G52 MP2 GPU, advanced 12nm manufacturing process. System Version: ATOTO AICE UI 11.0, which is developed & customized based on Android Q(10.0); System Language: English, German, French, Italian, Spanish, Portuguese, Japanese, Russian, Arabic, and other 12 languages.
• DSP / Pre-Amplifier: Built-in Digital Signal Processor allows you to set precise equalization, signal delay, bass boost, bass filter. Preset 9 EQ Modes, and 32 adjustable frequency bands (16 bands for front and 16 for rear). Built-in Max 4*49W BTL Amplifier with RMS 4*29W (Vcc=14.4v, THD=10%);

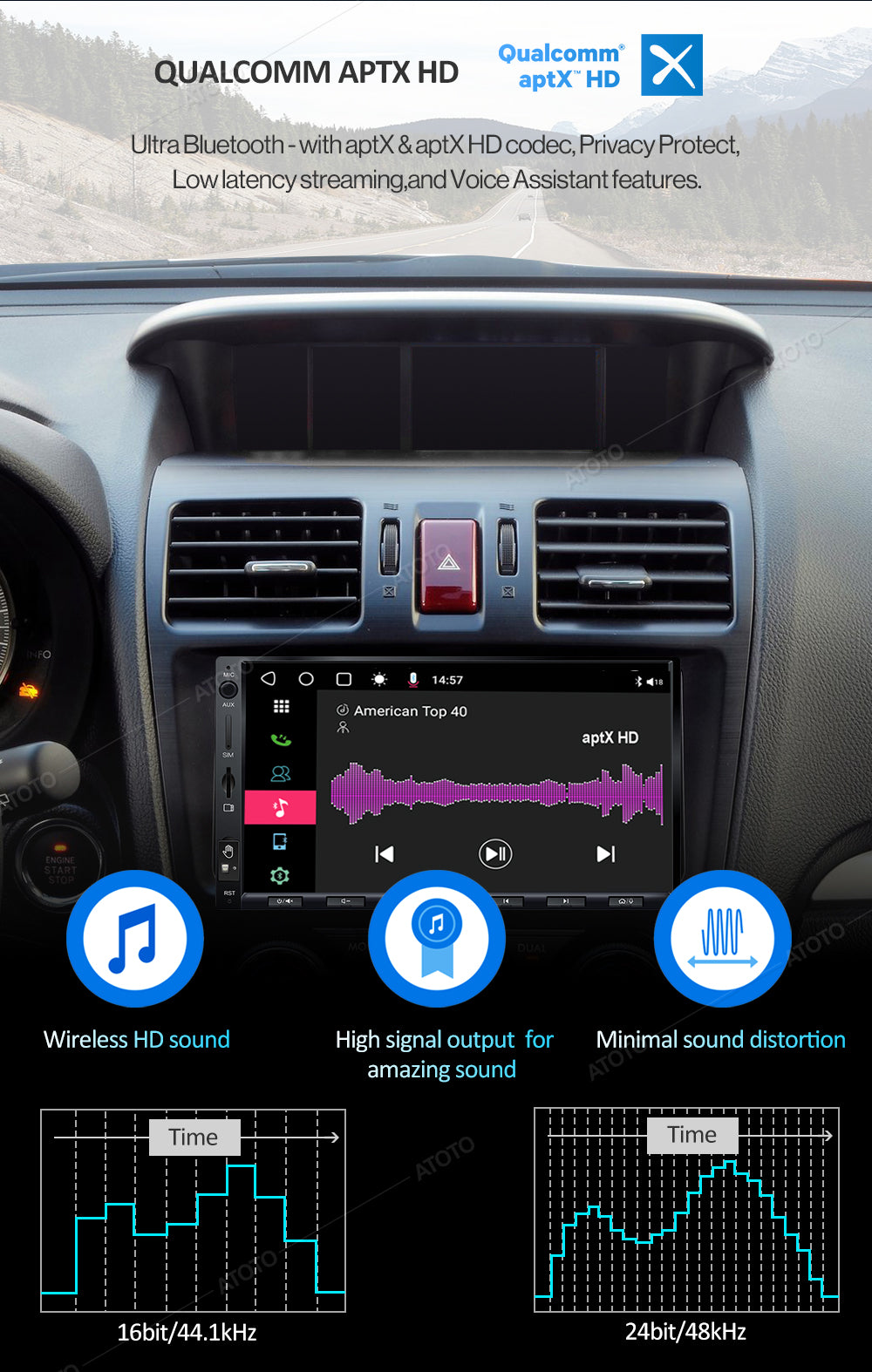

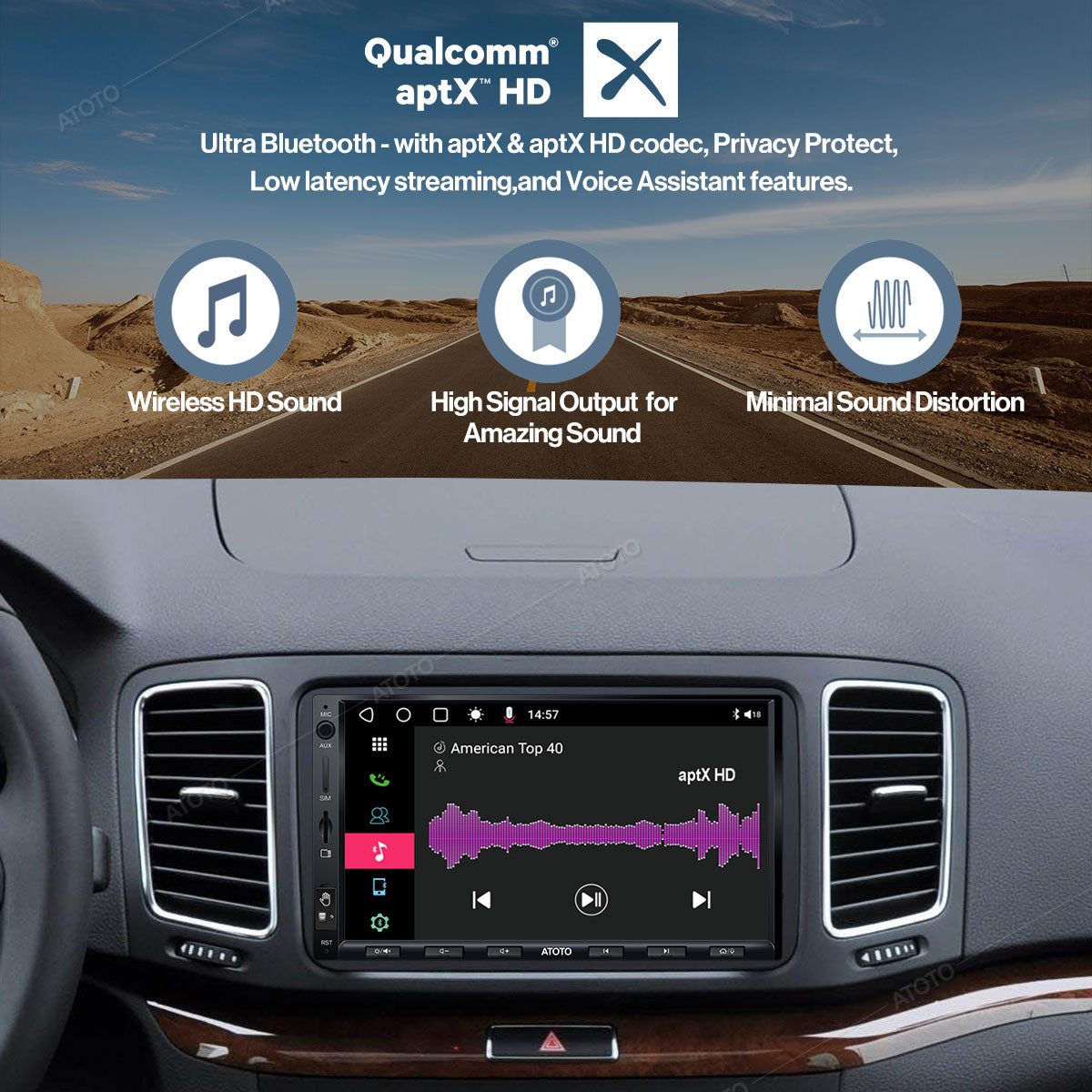

• Bluetooth & Radio Tuner: Dual Bluetooth (BT1 5.0 & BT2 4.1). Bluetooth1 is Qualcomm Bluetooth 5.0 with aptX & aptX HD codec (SBC & AAC are also supported), and it supports HFP/HSP/A2DP/AVRCP/PBAP protocols; Radio tuner: Built-in high sensitivity FM/AM radio tuner with RDS/RBDS feature (and the radio station name will be displayed if available);

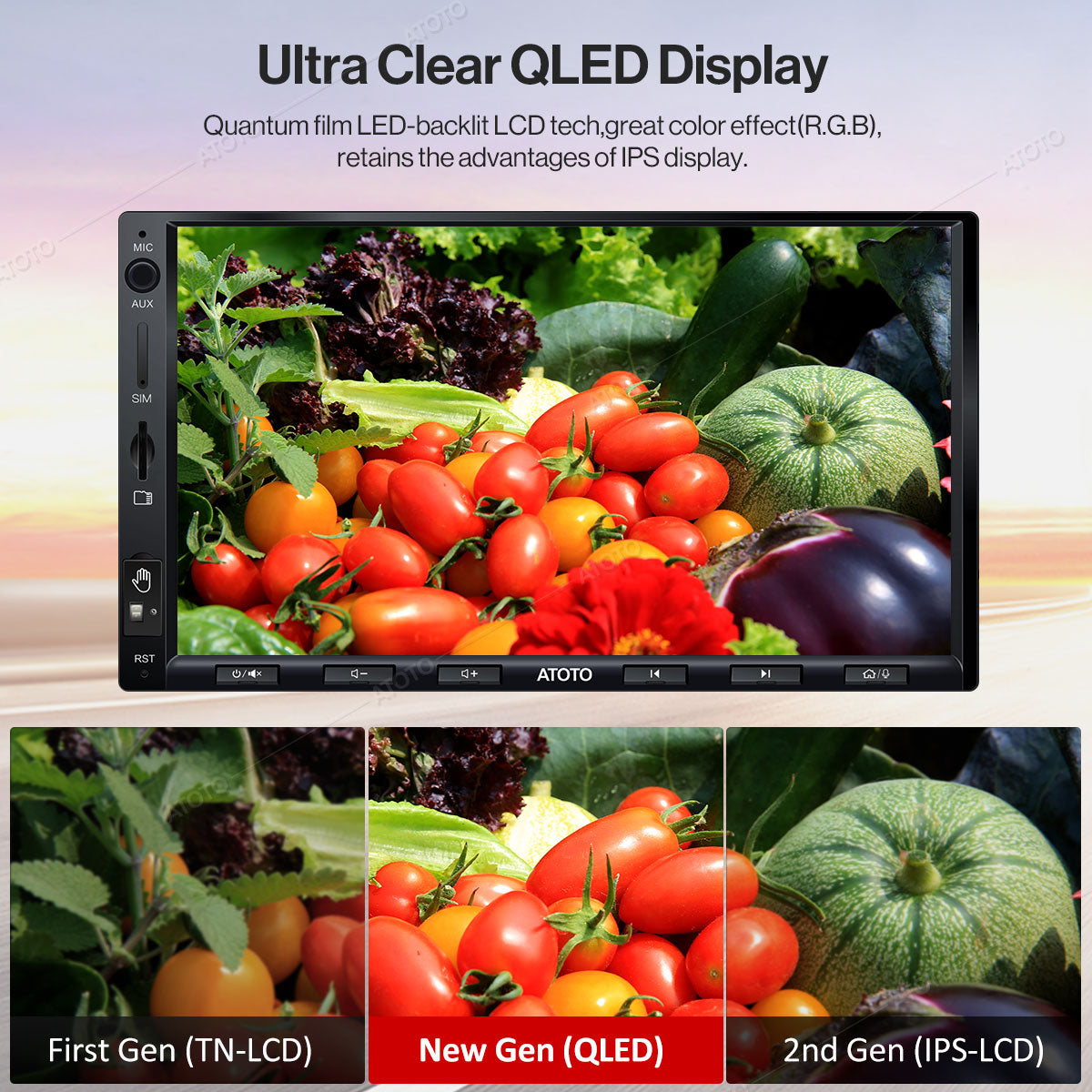

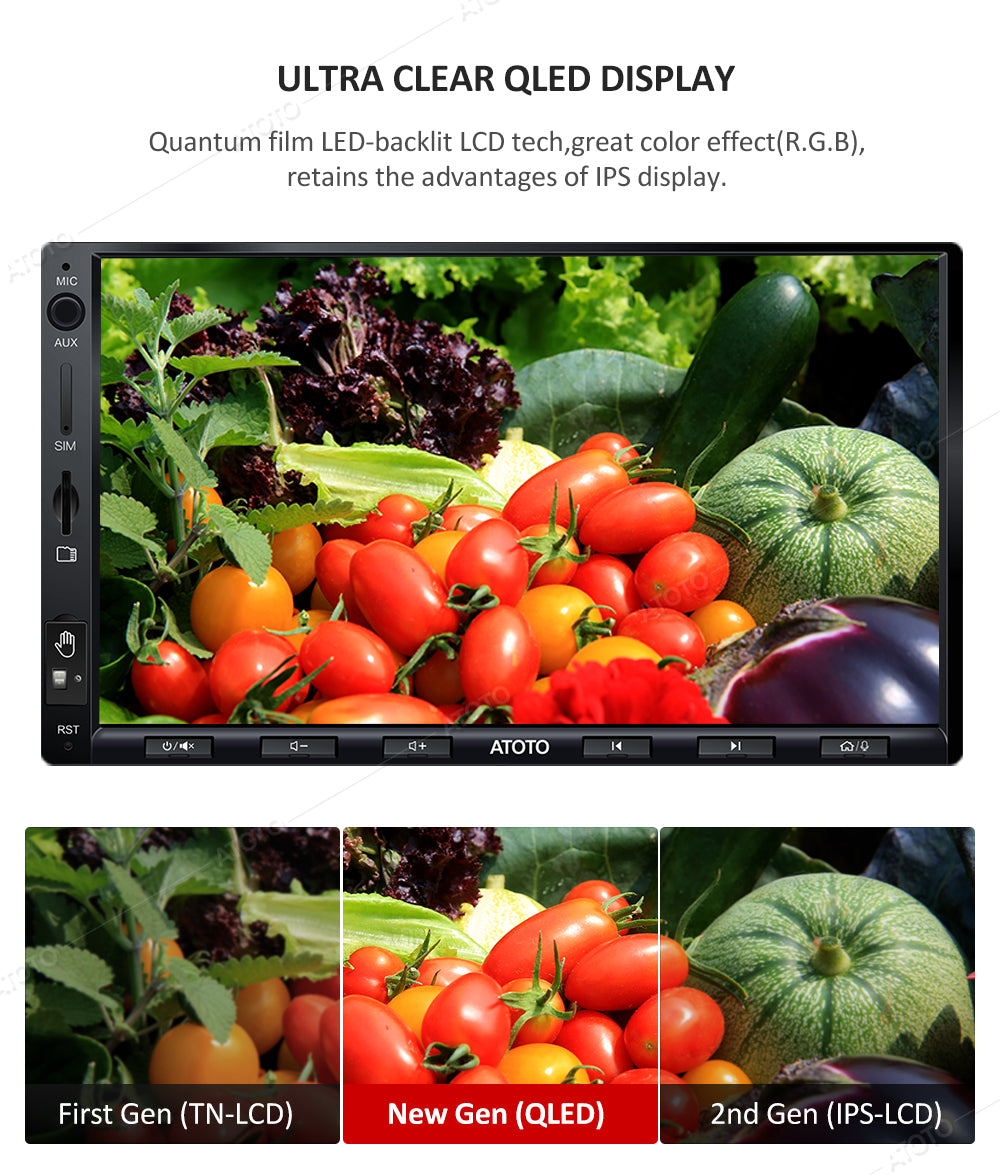

• Display: Full HD 7-inch 1024*600 5-Touch Capacitive Touchscreen with 600cd/m2 the latest QLED screen (a type of quantum film LED-backlit LCD technology which can greatly improve the color effect, and can provide a very clear and vivid picture quality. It also inherits the advantages of 178° full-viewing angle and high contrast of the IPS LCD);
• GPS/Navigation: Built-in GPS Receiver module with an external GPS antenna and Google Maps app is installed as the default GPS map.Users may need to download offline map data of a specific area for offline navigation if preferred. Other maps/navigation apps from Google Play Store can also be installed;

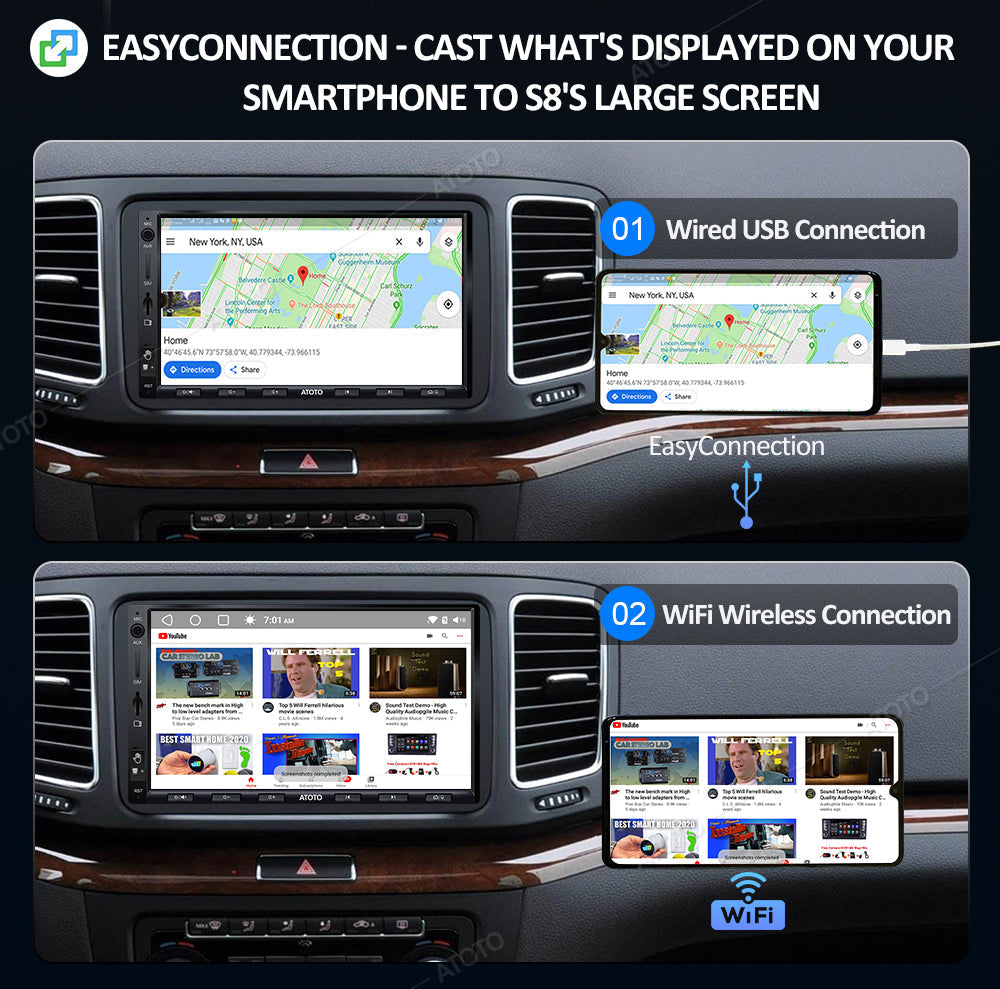

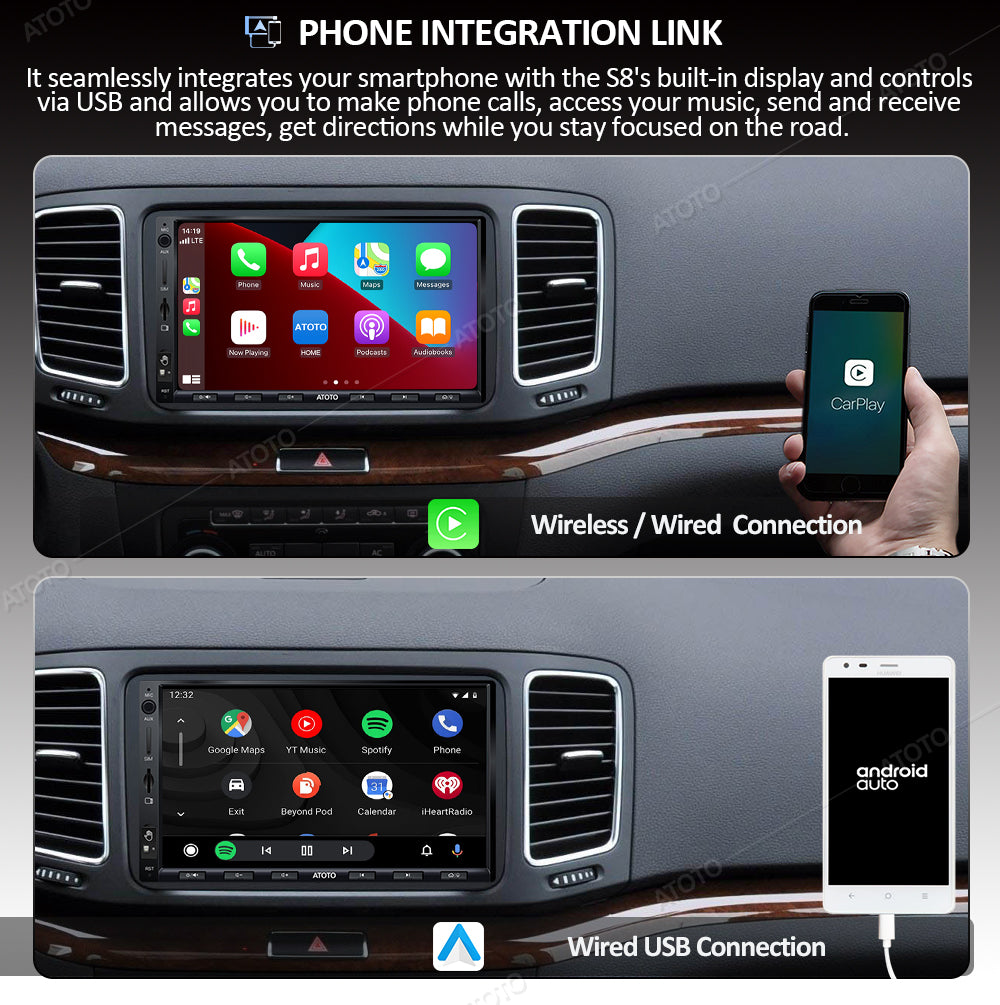

• Phone Mirroring & Phone Integration Link: Phone Mirroring - EasyConnect app pre-installed, and it supports working with the latest iOS & Android devices (The system firmware update may be required). Two options (USB /WiFi) are all available for connecting to Android smartphones and iPhones; Phone Integration Link (wired / wireless CarPlayand Android Auto) - It seamlessly integrates your smartphone (iPhone & Android) with the S8's built-in display, allowing you to make phone calls, access your music, send and receive messages, get directions (Note: for the wired CarPlay and Android Auto Connection on ATOTO S8 series head-units, please use the factory/original USB cable that comes with the phone).

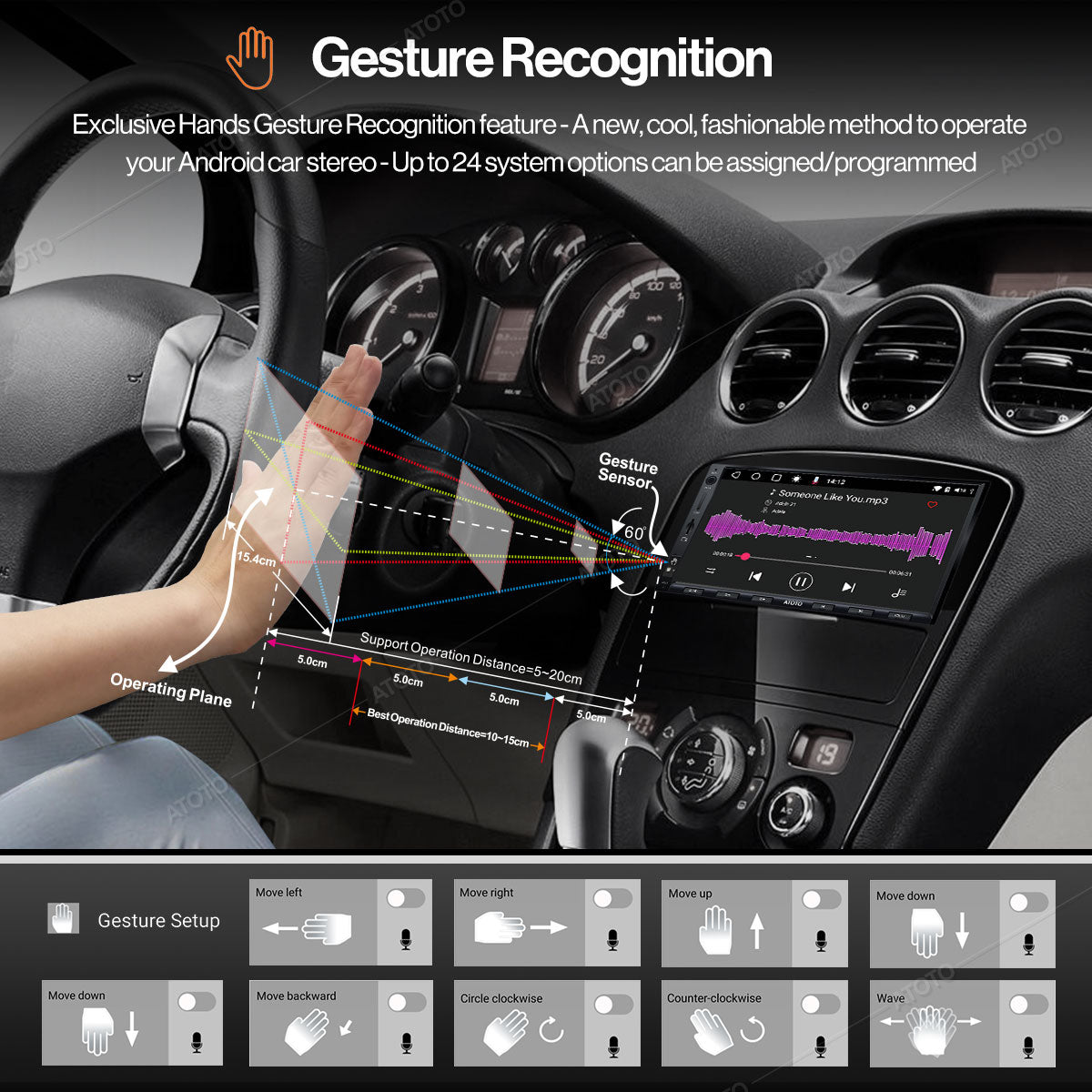

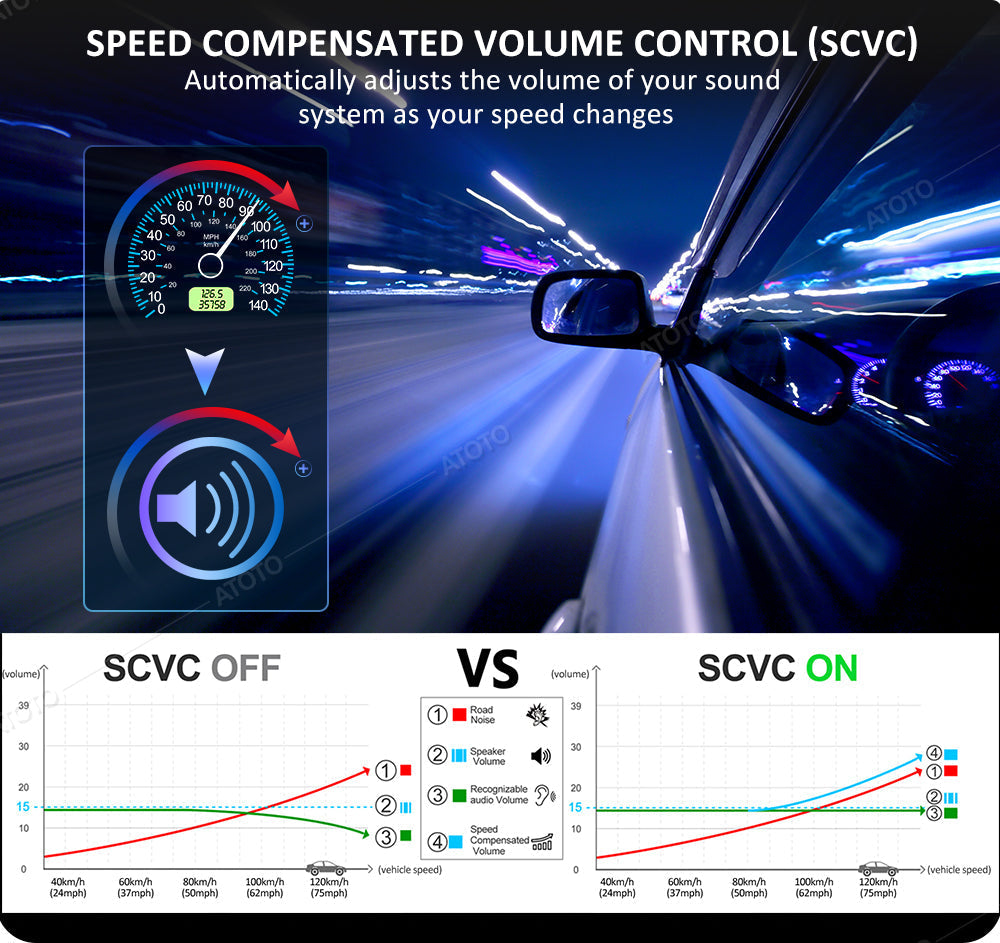

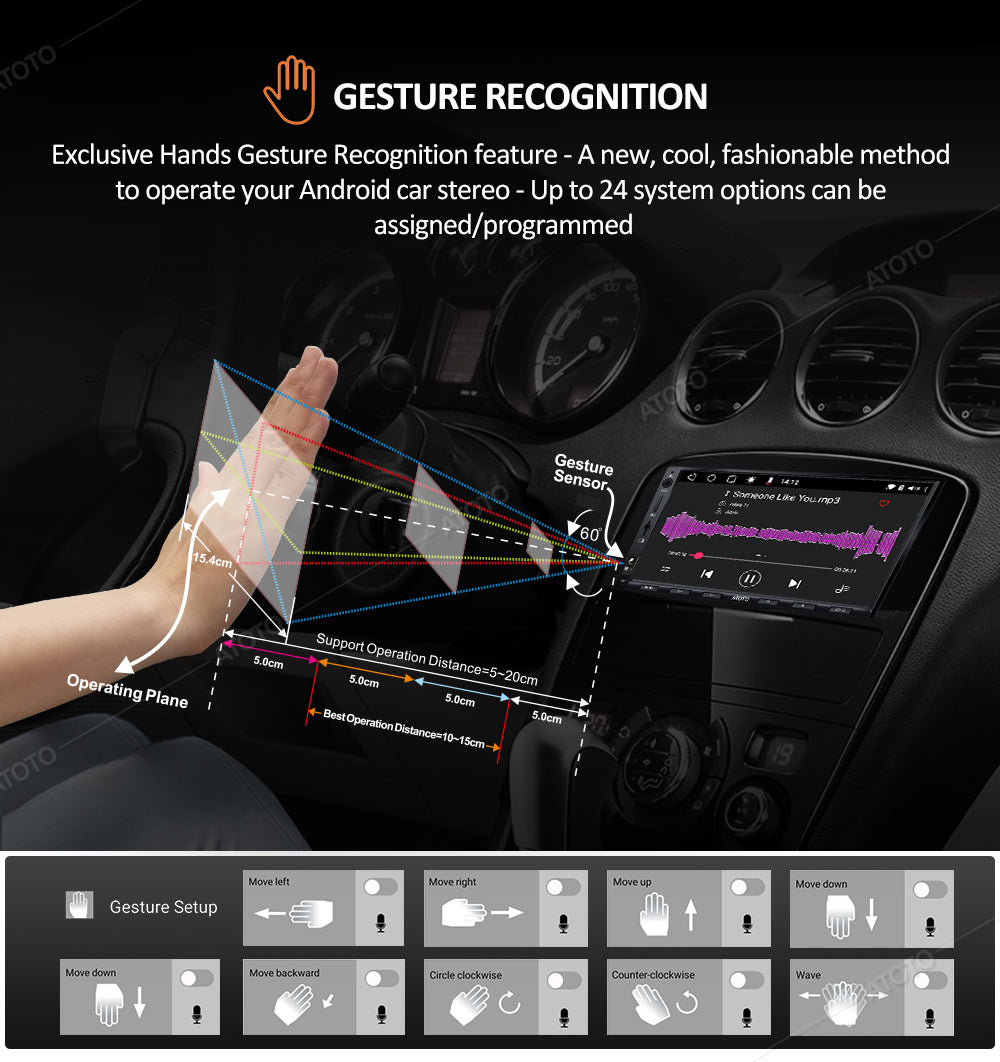

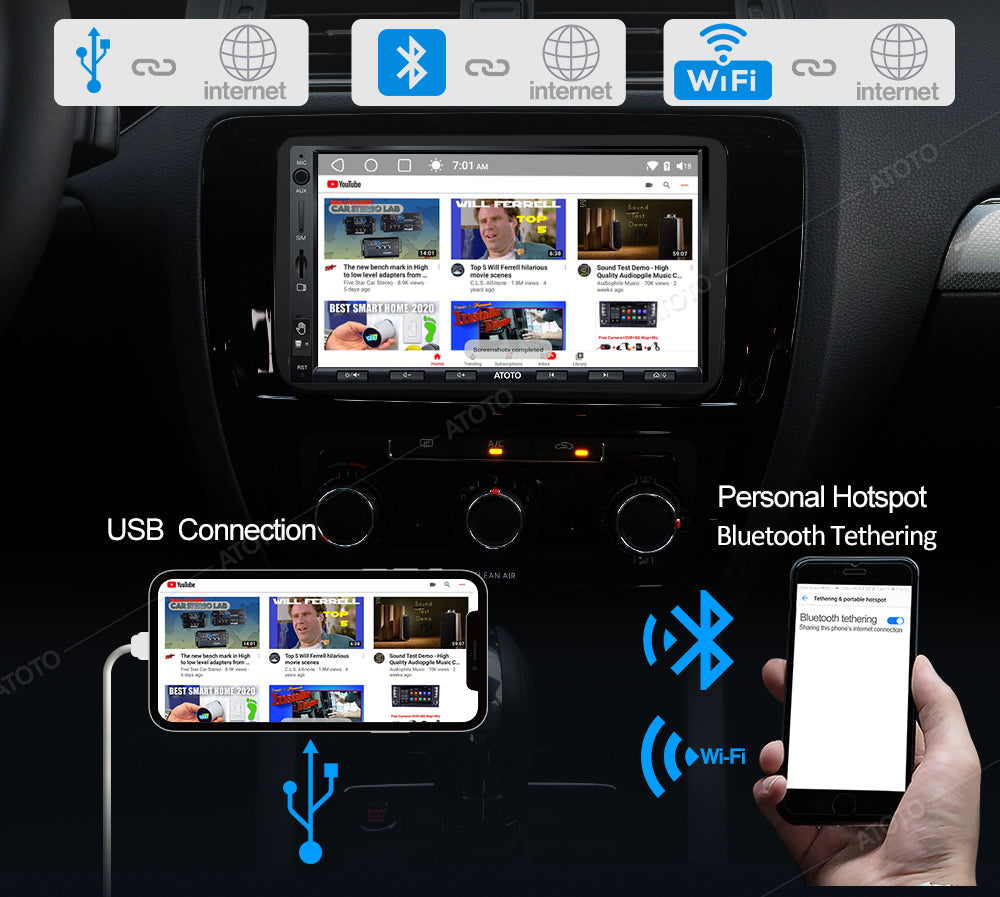

• Some Other features: Fast System Boot - Start the car & access system within 2 seconds; Split Screen Display - Run a navigation map and another app (such as Youtube) on the same screen simultaneously; Digital Photo Frame option - Users can put memorable photos in the specified Gallery Folder and let them autoplay on S8's HD big screen with only a tap (or a hand gesture); Speed Compensated Volume Control (SCVC)- When you increased in speed the headunit volume increased a certain percentage and when you slowed down, the volume dropped. This is to compensate for road noise; USB network tethering - sharing your phone data with S8 headunit via USB connection (EasyConnect app); Live RearView (LRV) - Now you can access rearview even if your vehicle in moving ahead. This could remove obstructions caused by passengers, headrests as well as the vehicle’s roof and rear pillars, thus increasing the field of view and allowing the driver an unimpeded view of the lanes behind and traditional blind-spots. Gesture Control - It can recognize 9 hand-gestures and up to 24 options can be programmed;

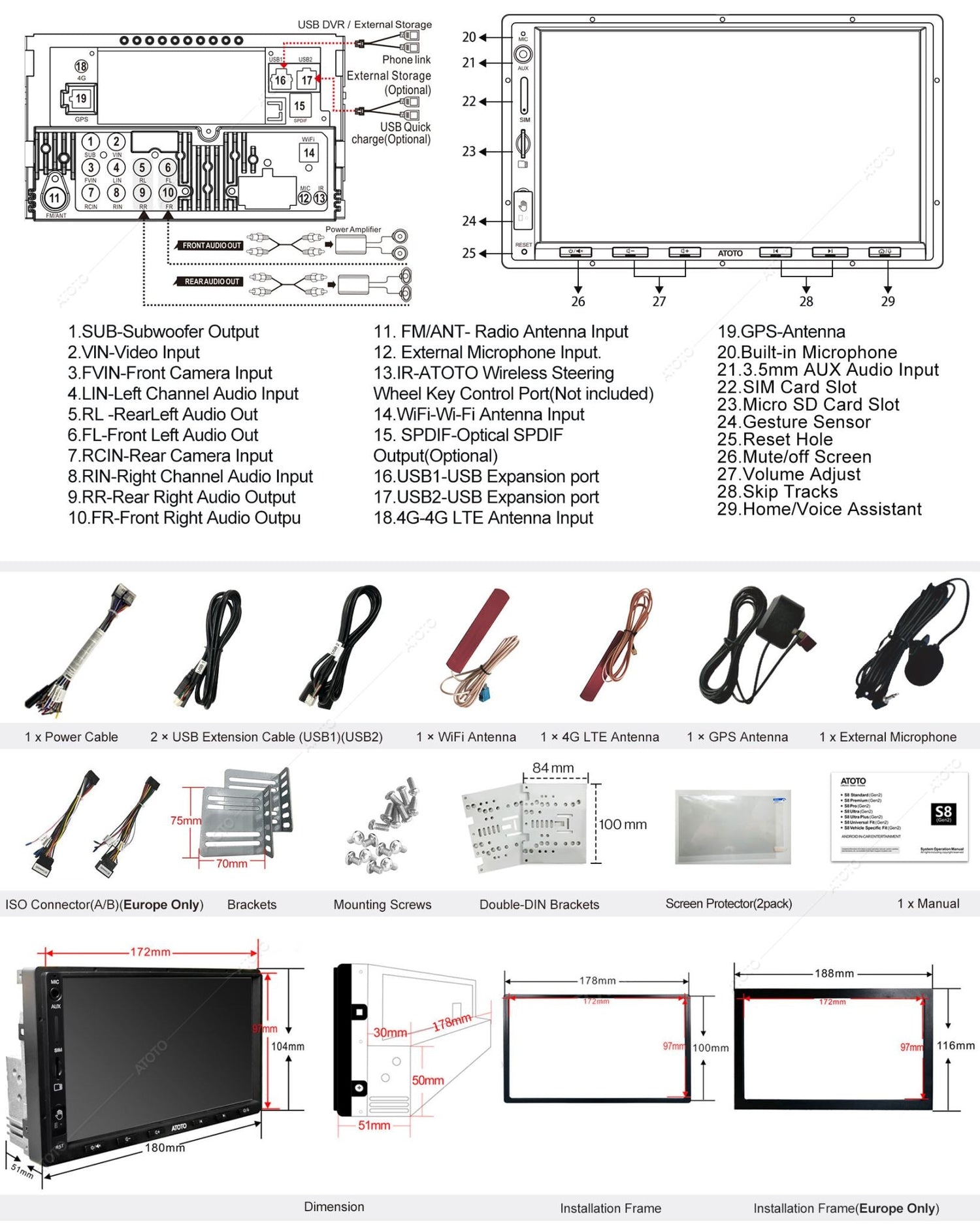

Inputs,Outputs & Slots

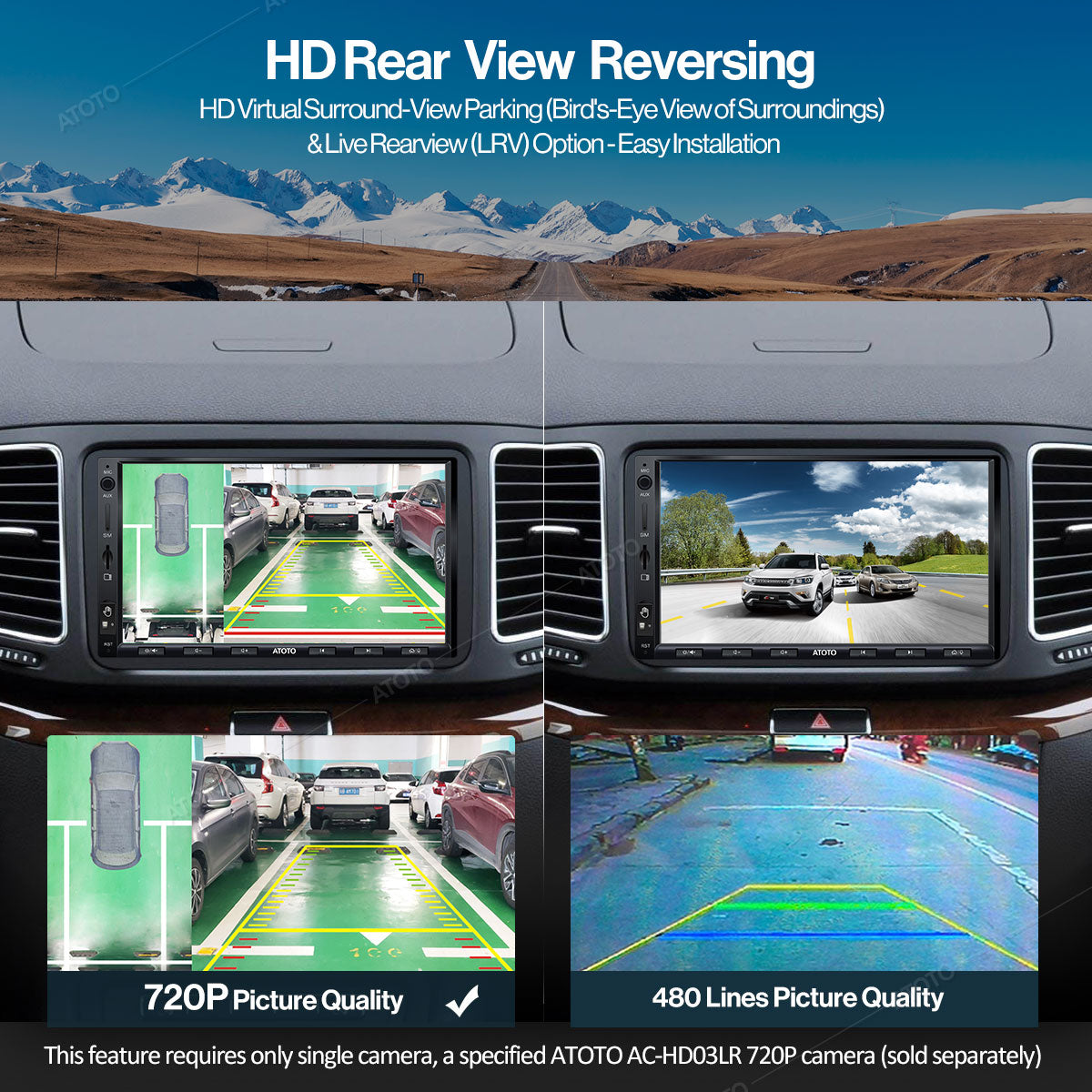

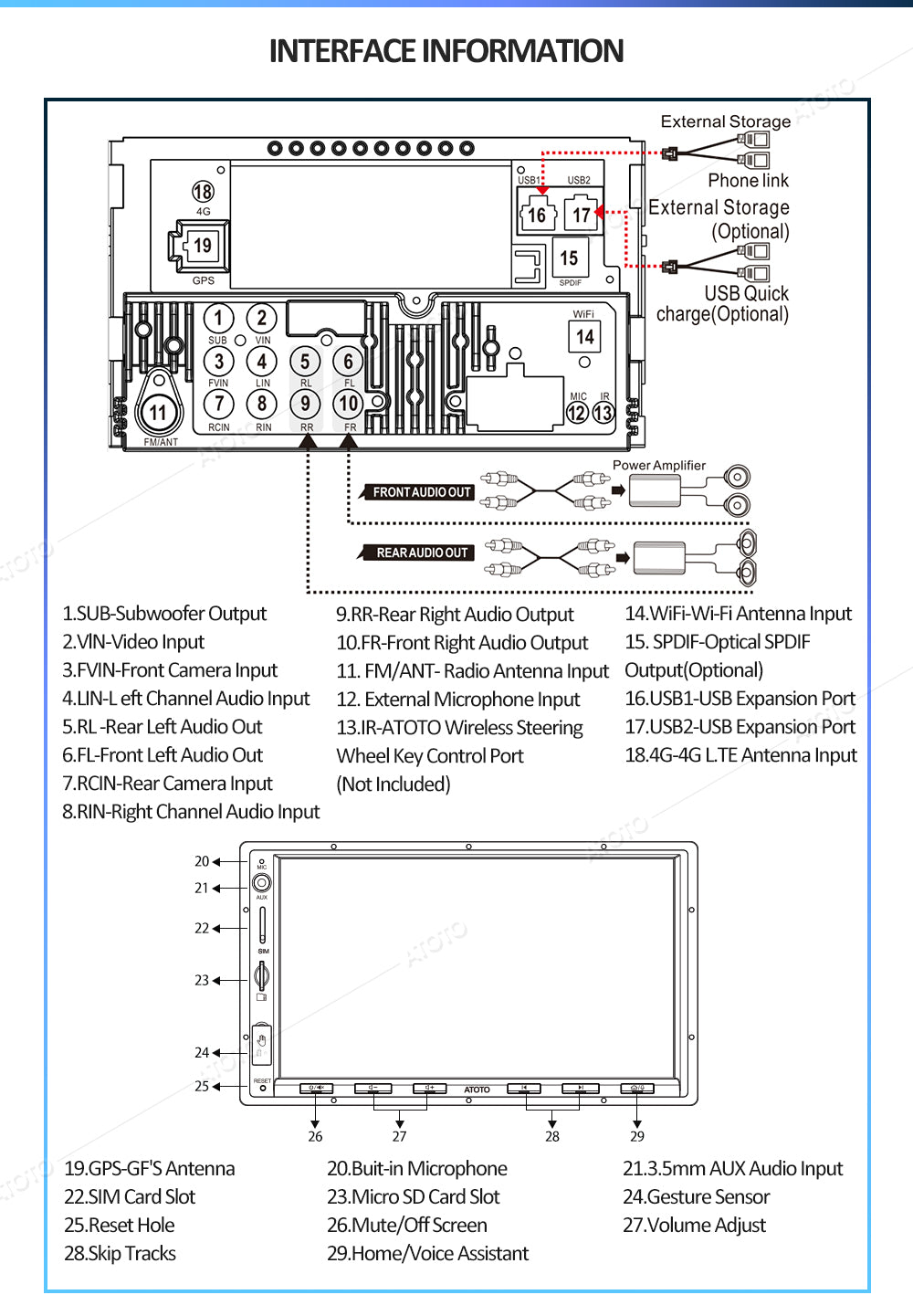

• AUX Audio(L/R) /Video input; FCAM front camera video input; Rearview camera input (S8 can process 720P HD video signal. So you can connect a specific HD rearview camera to S8 for 720P video display); 4-CH RCA Audio Out (2v) for connecting to factory/aftermarket amplifier; Separate Sub-woof Out (0.8v); For S8 Ultra, there are Optical SPDIF Out and Quick Charge interface available; To connect to a headrest monitor, you need to get an extra ATOTO USB-to-HDMI or USB-to-RCA video output adaptor(not included);
• One Micro SD slot - to store media files, and can read up to 512GB storage card; 3 USB interfaces - 2 for data communication, including reading USB Drive (read unlimited external storage devices, including portable SSD) & optional USB devices, and connecting phone for Mirror casting/EasyConnect or Phone Integration Link; 1 USB for fast phone charge.

Vehicle Fit:

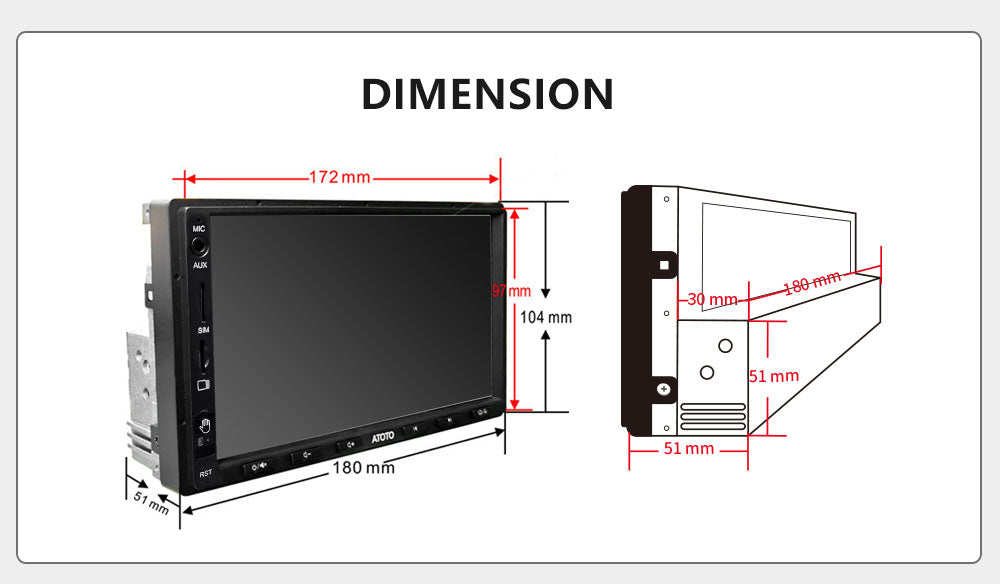

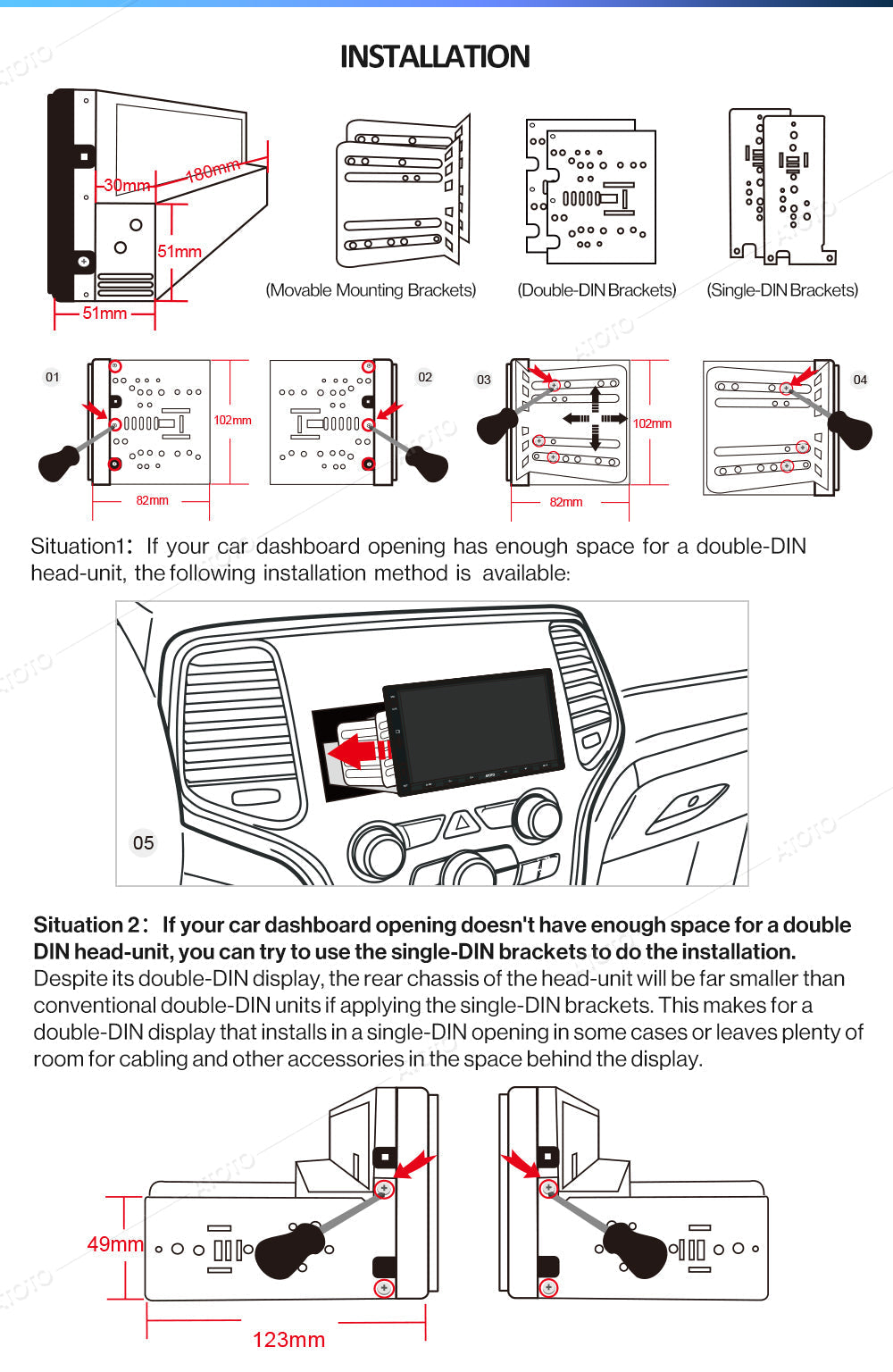

• Most dashboard mounting frame suppliers from North America may provide a double din mounting frame with 172mm*97mm opening (Metra dash kit, PAC dash kit,etc). ATOTO is the first one to bring an Android 7-inch car stereo with a minimum 172mm*97mm front panel dimension. An extra frame adapter is also included in the package to extend its size to 178mm*101.5mm.
